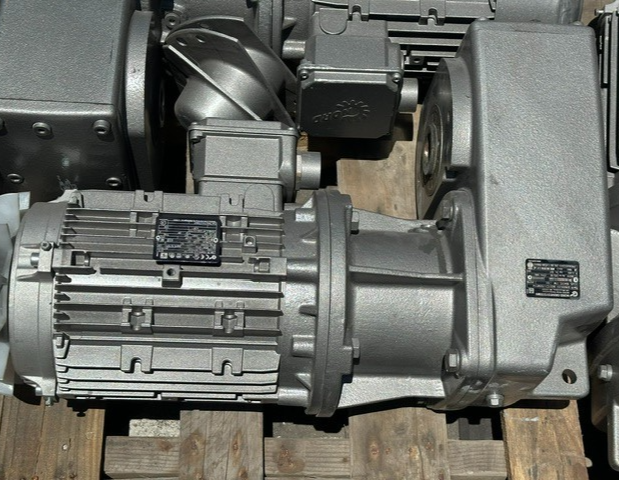

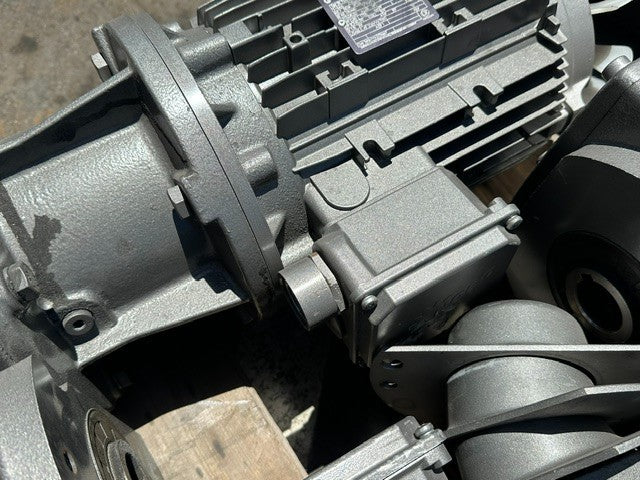

NORD SK 3282 Gear Reducer + SK 112MP/4 Motor — Complete Gearmotor Set — NEW OEM
This listing is for a complete genuine NORD gearmotor set: the NORD SK 3282 CLINCHER parallel-shaft gear reducer paired with the NORD SK 112MP/4 5 HP electric motor, sold together as a matched unit. New old stock (NOS) — unit may show dust, light shelf wear, or minor handling marks from storage, but has not been placed into service.

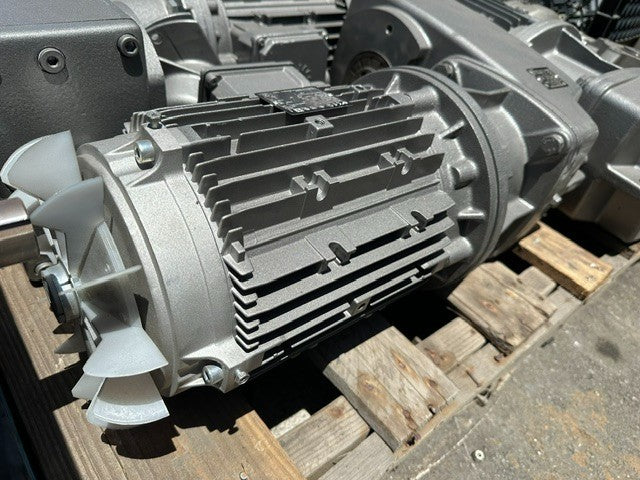

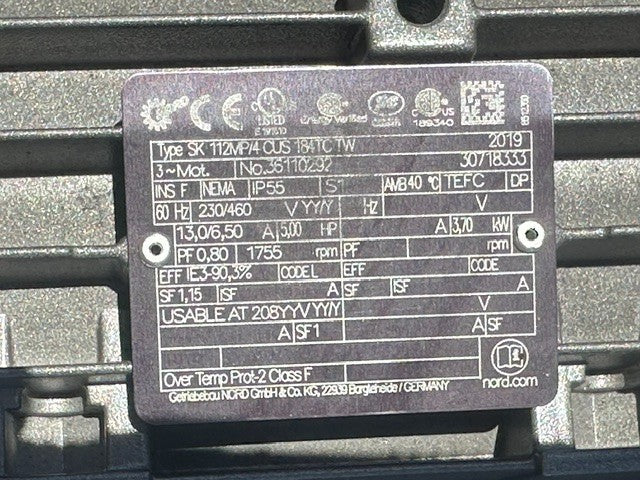

MOTOR SPECIFICATIONS (NORD SK 112MP/4)
- Power: 5 HP (3.7 kW)
- Speed: 1755 RPM (4-pole)
- Voltage: 230/460V, 3-Phase, 60 Hz
- Full Load Amps: 13.0 / 6.50 A
- Frame: NEMA 184TC, C-face

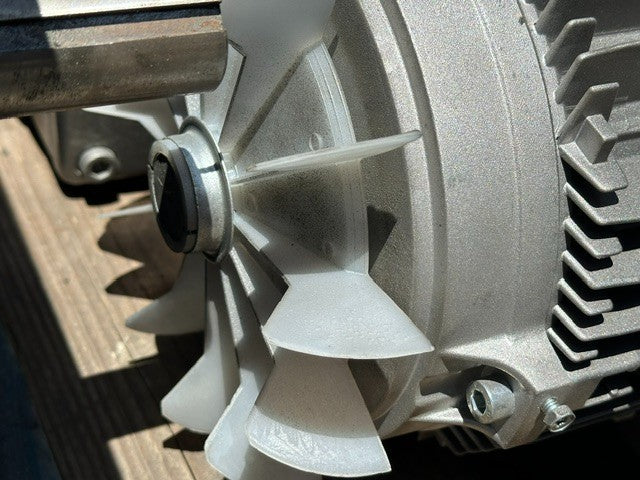

- Enclosure: TEFC, IP55
- Efficiency: IE3 Premium Efficient, 90.3%
- Service Factor: 1.15
- Insulation Class F, with thermal winding protection (TW), usable at 208V
- Build Year: 2019

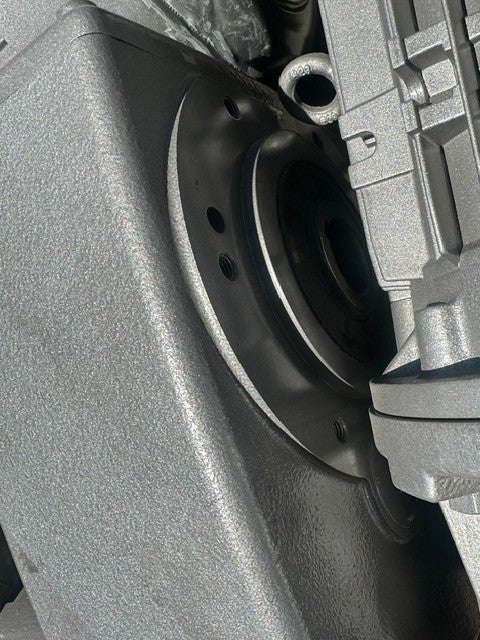

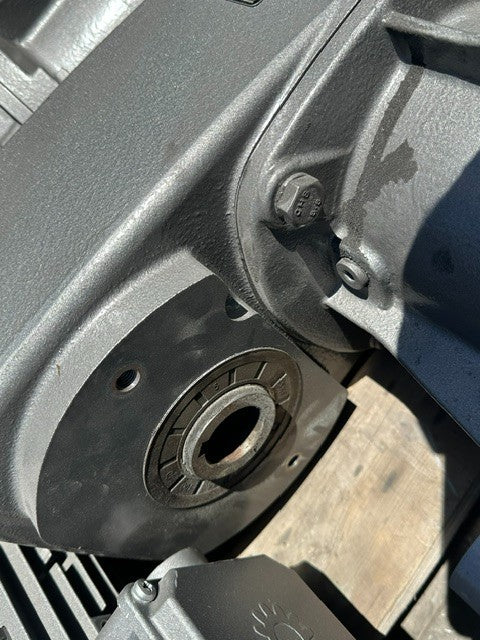

GEARBOX SPECIFICATIONS (NORD SK 3282)
- Type: CLINCHER Parallel-Shaft Speed Reducer
- Output Torque: 3,624 lb-in
- Housing: One-piece UNICASE cast iron
- Approx. Gear Unit Weight: 190 lbs
- Lubricant (per nameplate): Mobil 600 XP220
- Build Year: 2018
APPLICATIONS
NORD parallel-shaft gearmotors are widely used on conveyors, mixers, agitators, shredders, screw conveyors, and material-handling equipment.

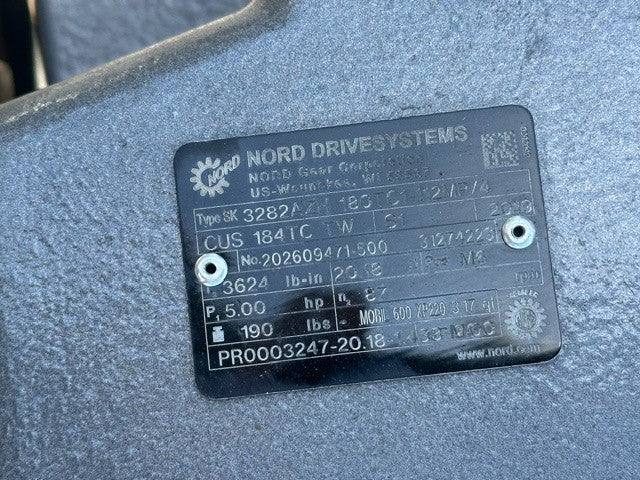

REFERENCE / IDENTIFICATION NUMBERS (match to your unit)
- Gearbox Type: SK 3282 (184TC input)
- Motor Type: SK 112MP/4 CUS 184TC TW
- NORD No.: 202609471-500
- Config/Project No.: PR0003247-20.18
There is no separate superseding part number for this assembly — please match by the NORD type and configuration numbers above to confirm fit for your application.
RETURNS
Parts can be returned for any reason within 30 days of purchase by opening a return request through eBay.
Thank you for choosing QBS Parts INC! We stand behind everything we sell. If there is any issue at all with your order, please reach out and give us the opportunity to make it right before leaving feedback — we're happy to help.
QBS Parts, Inc. - Gardena, CA
