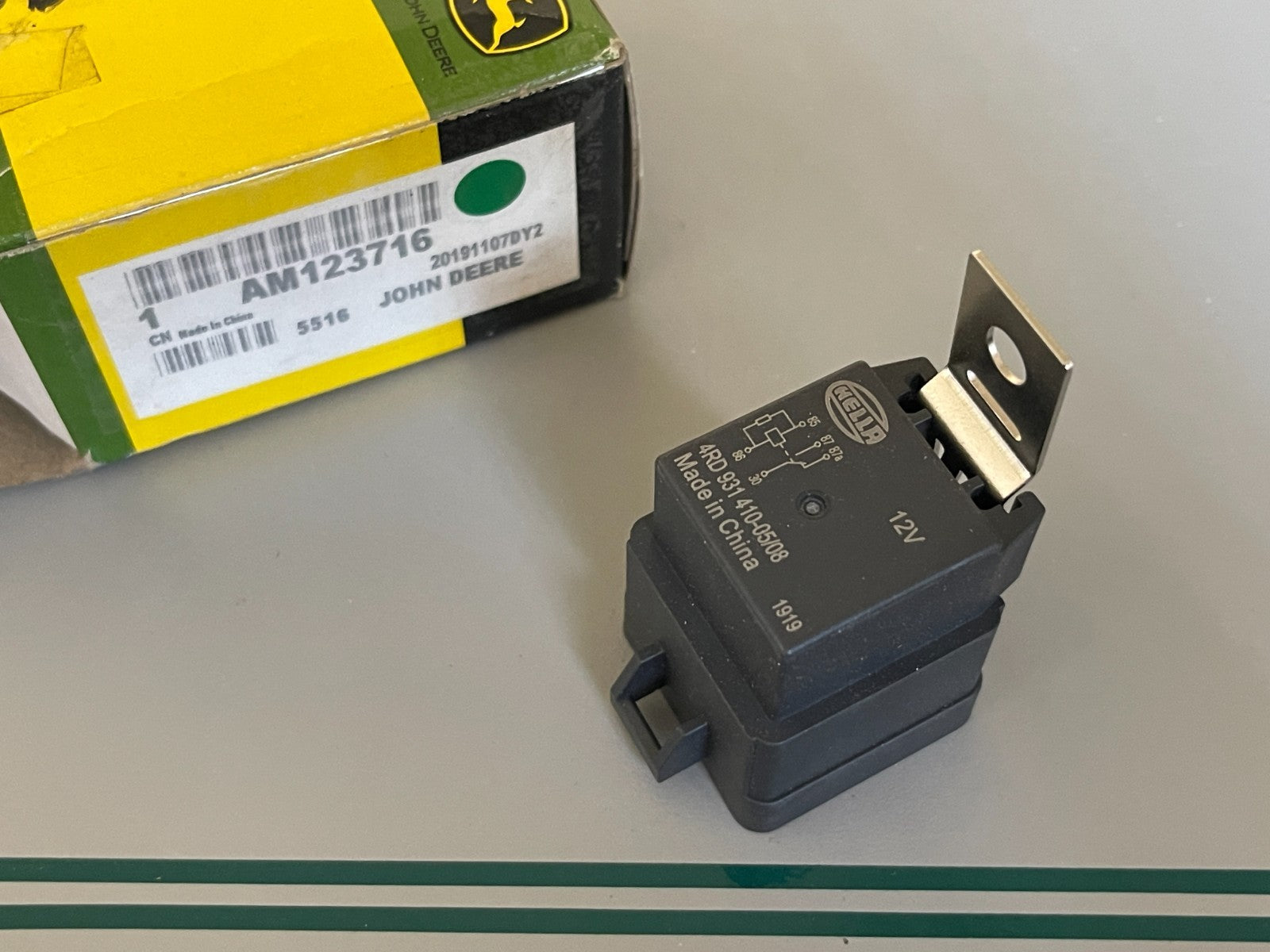

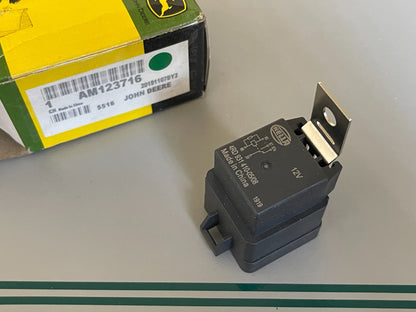

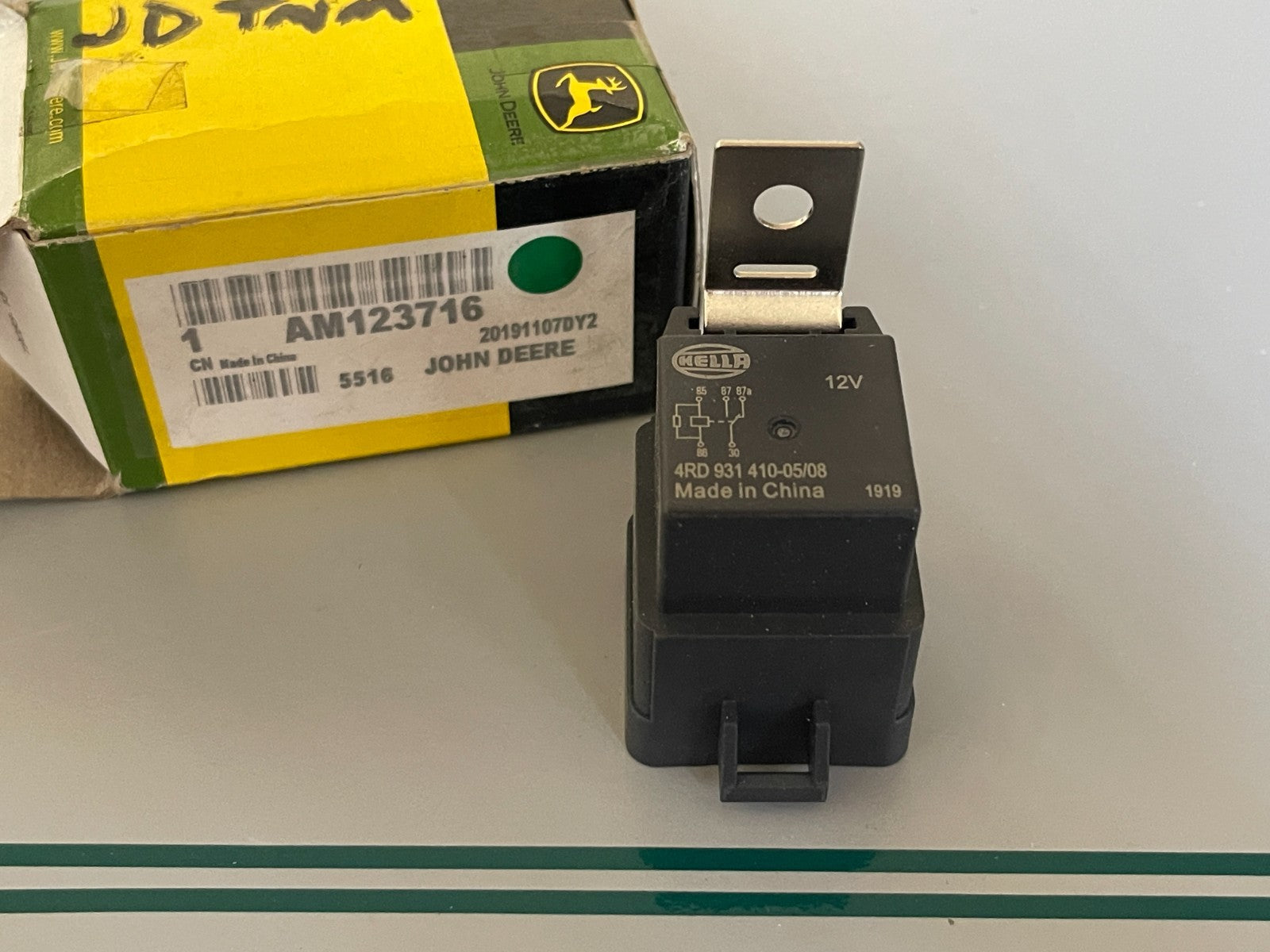

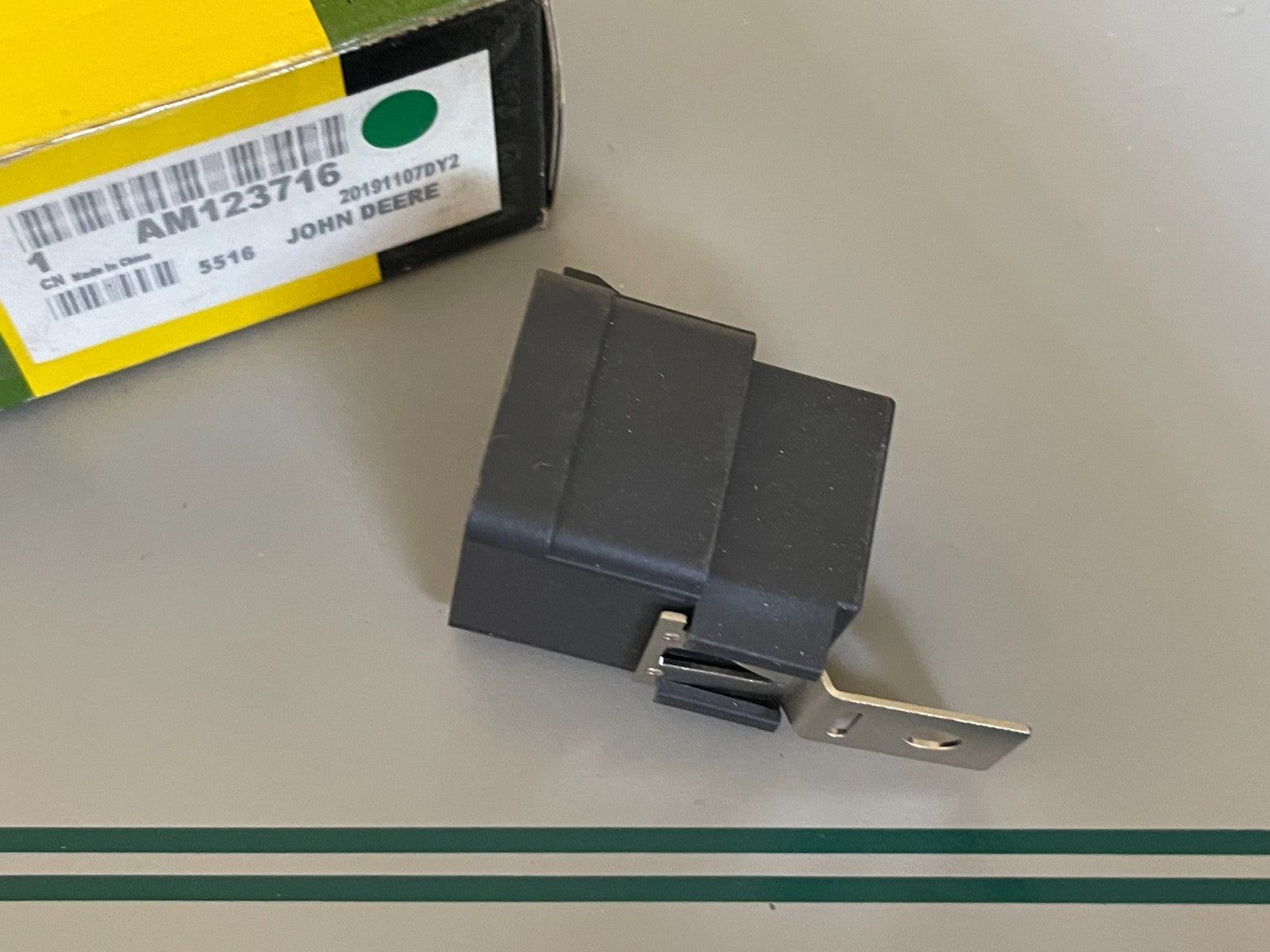

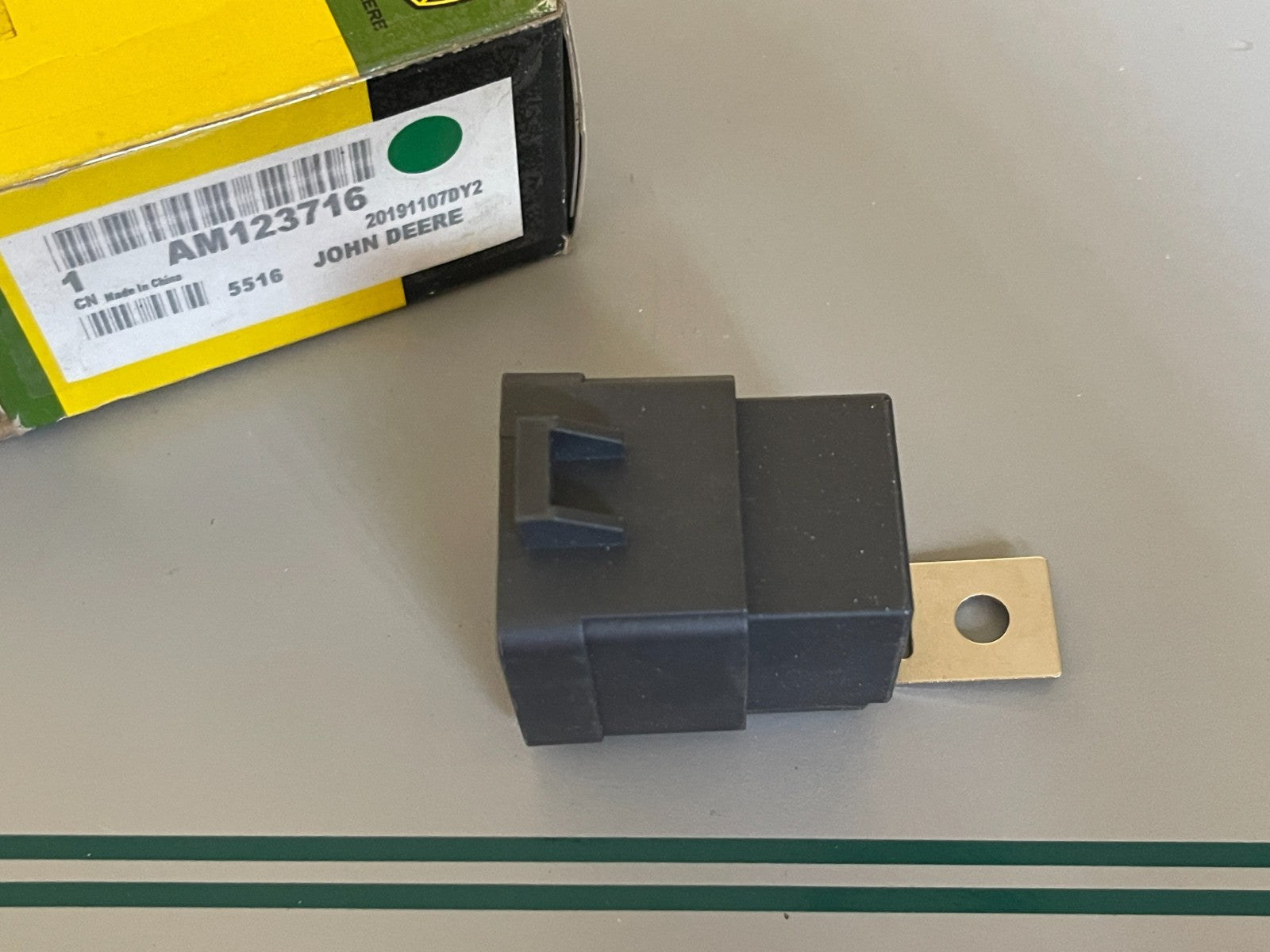

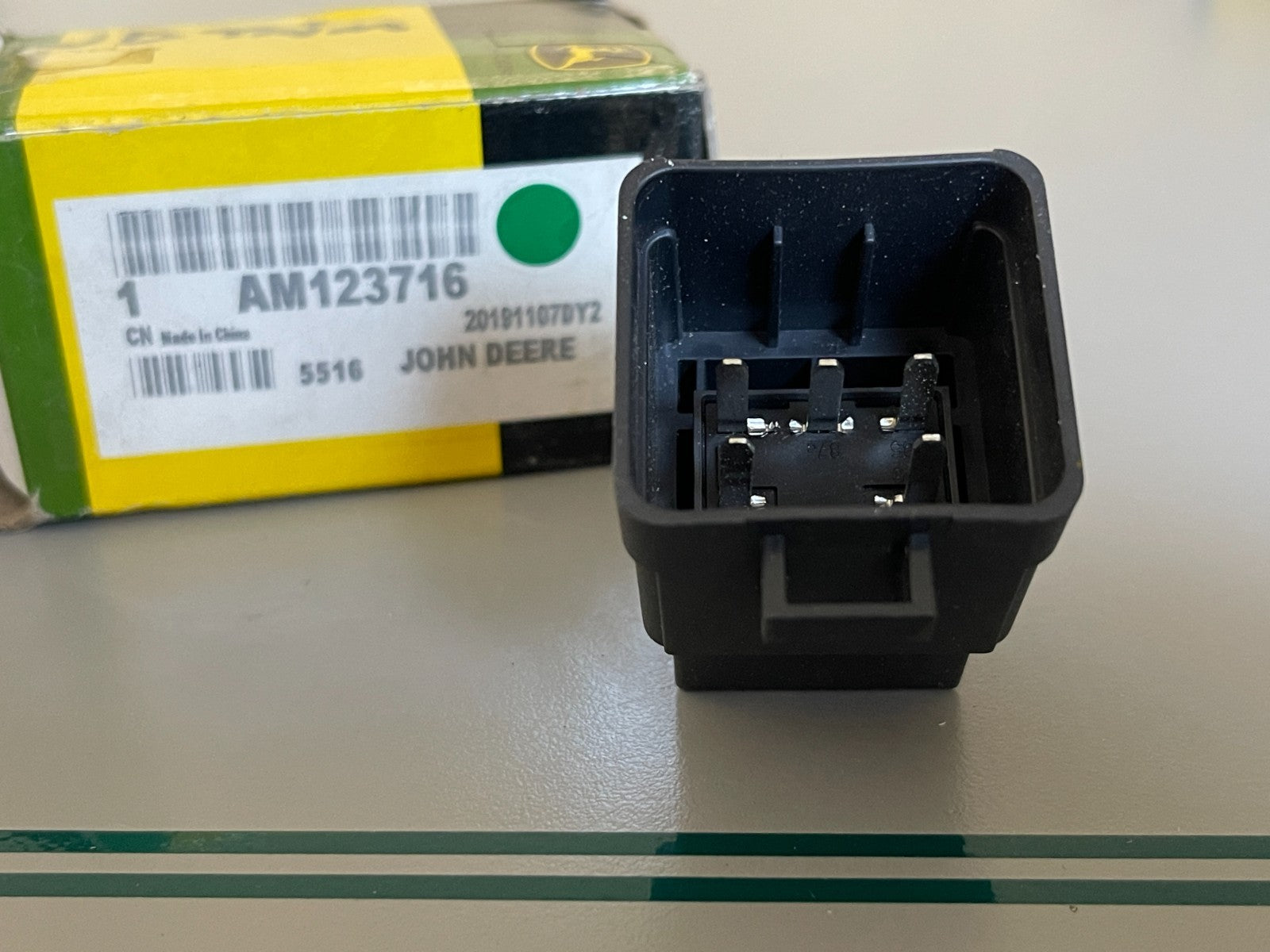

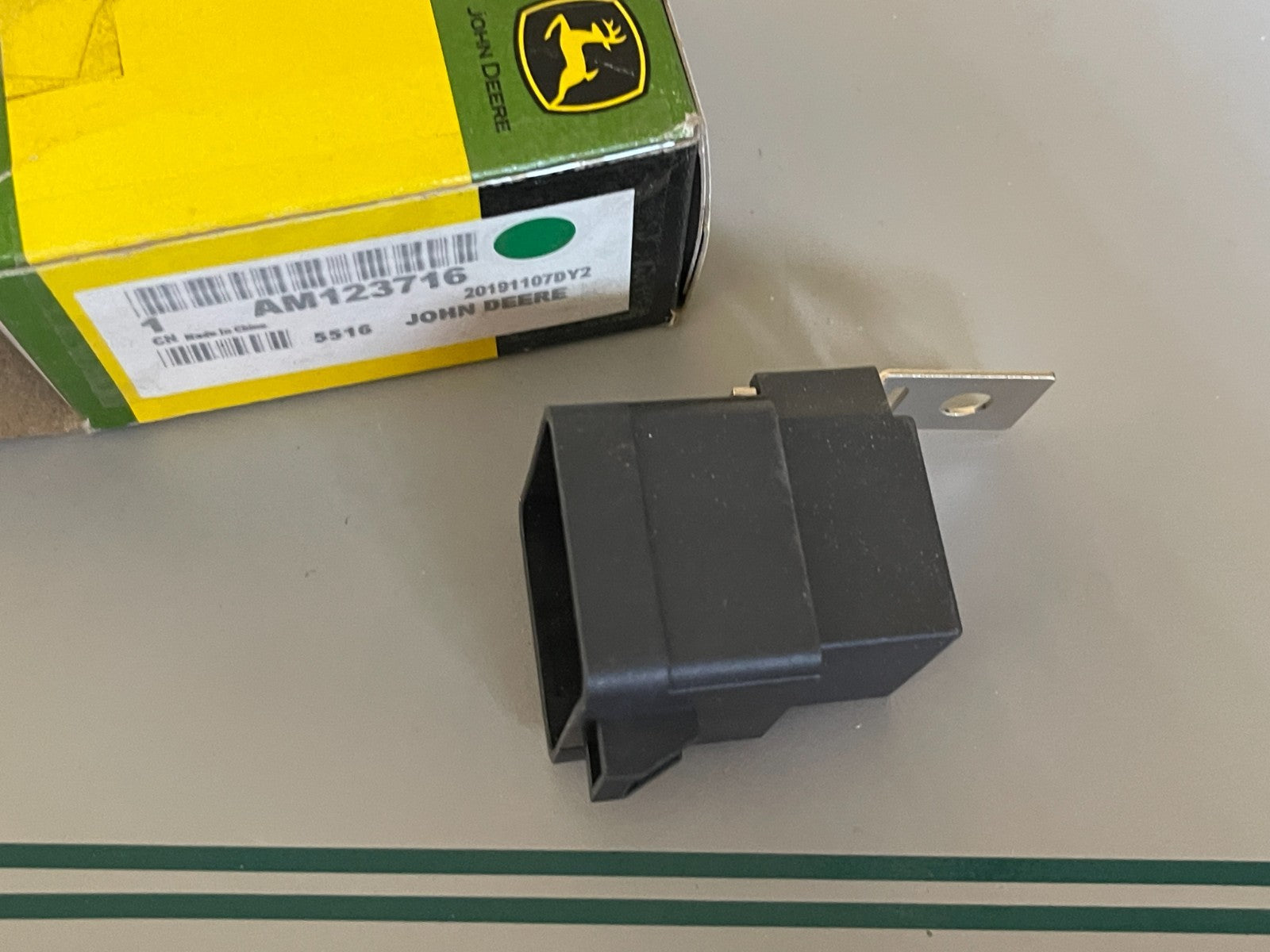

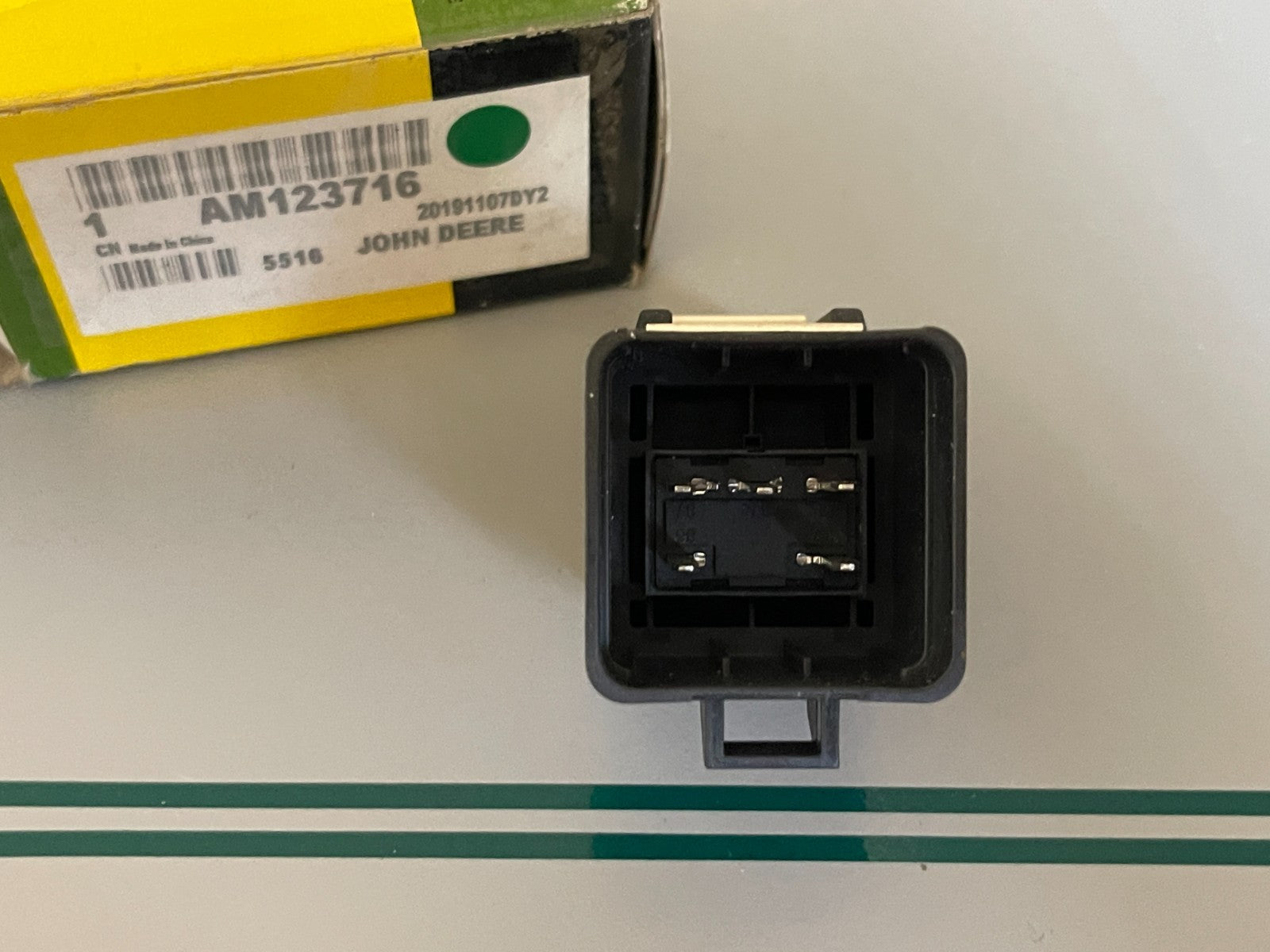

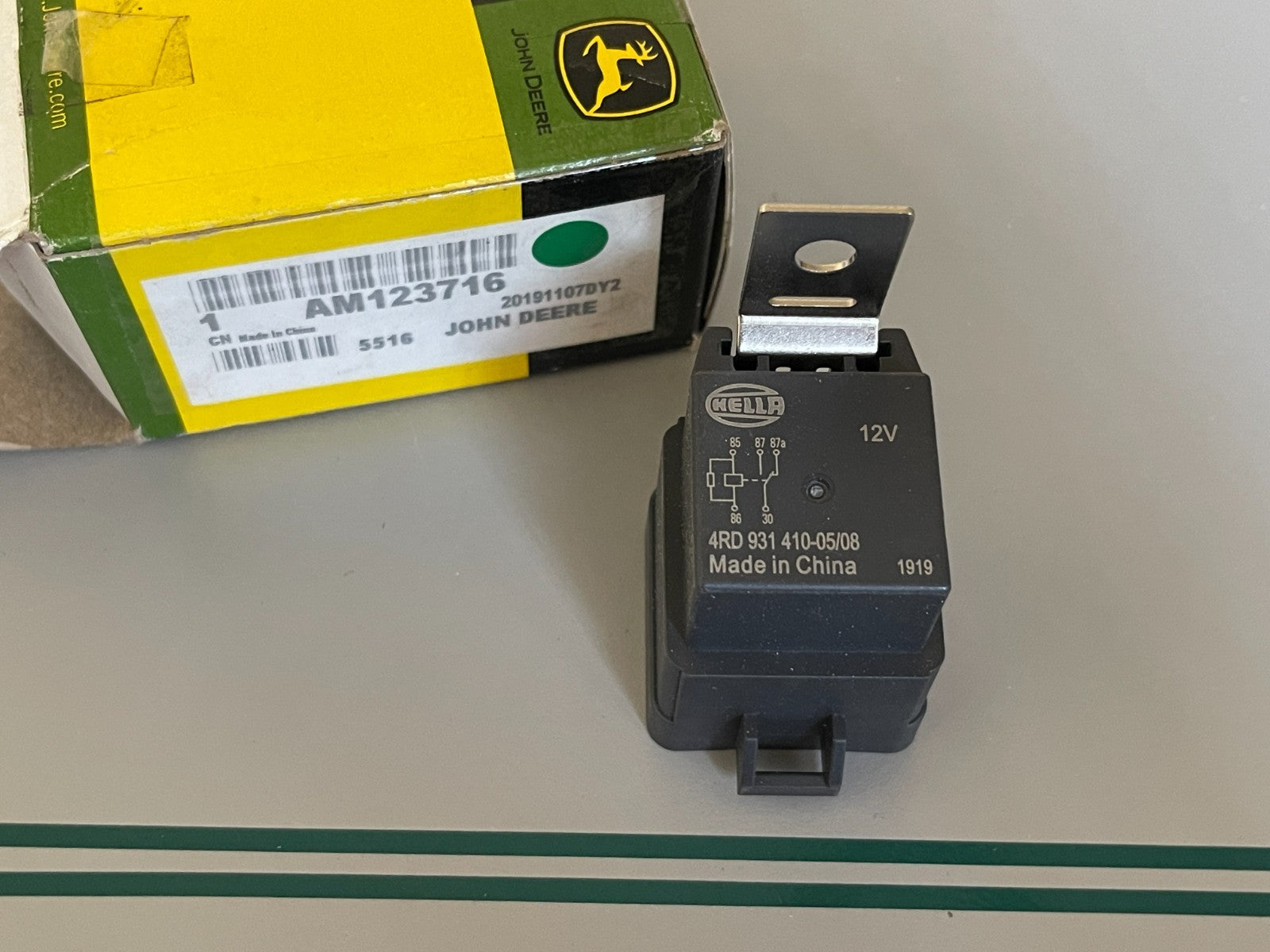

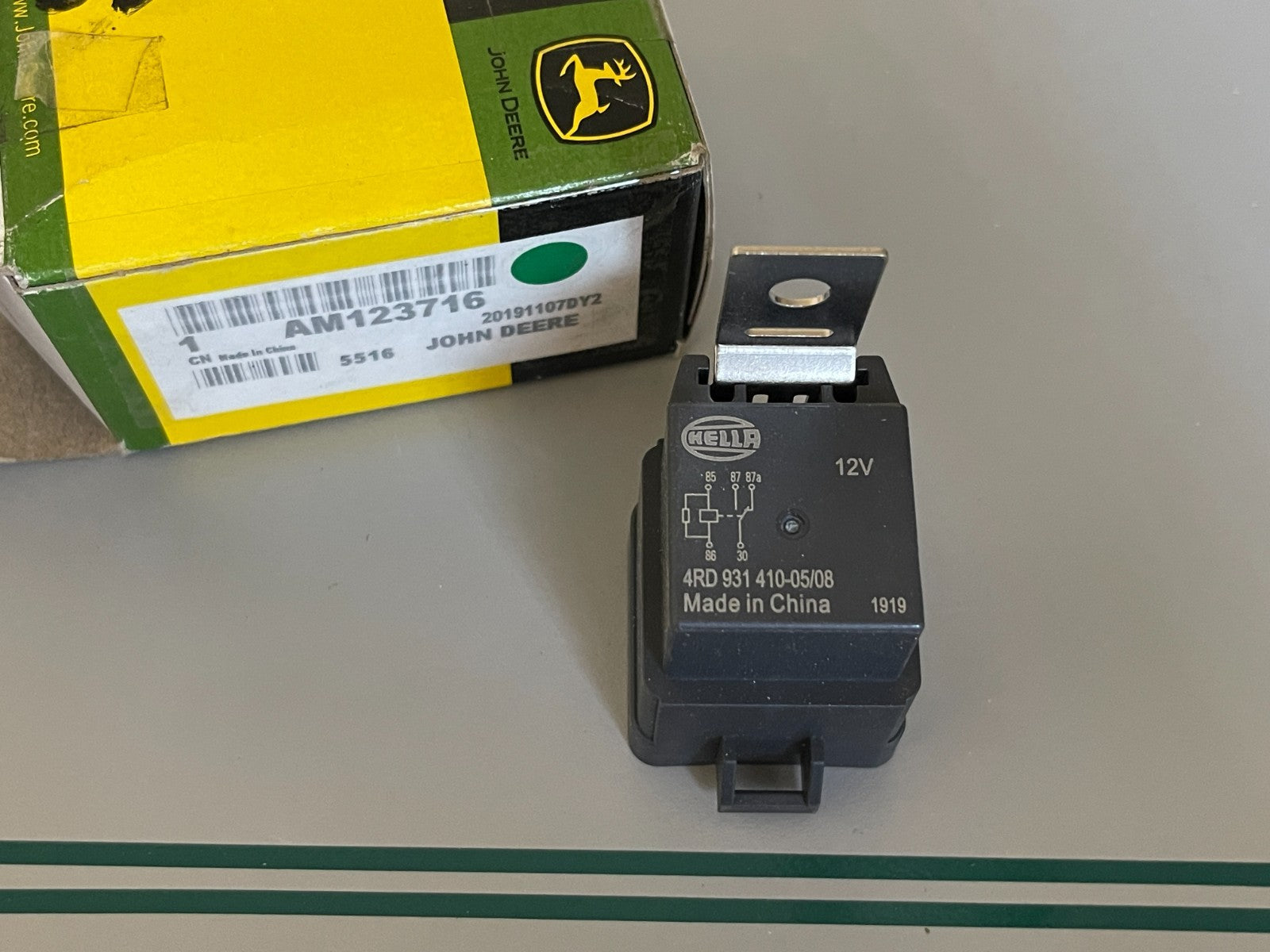

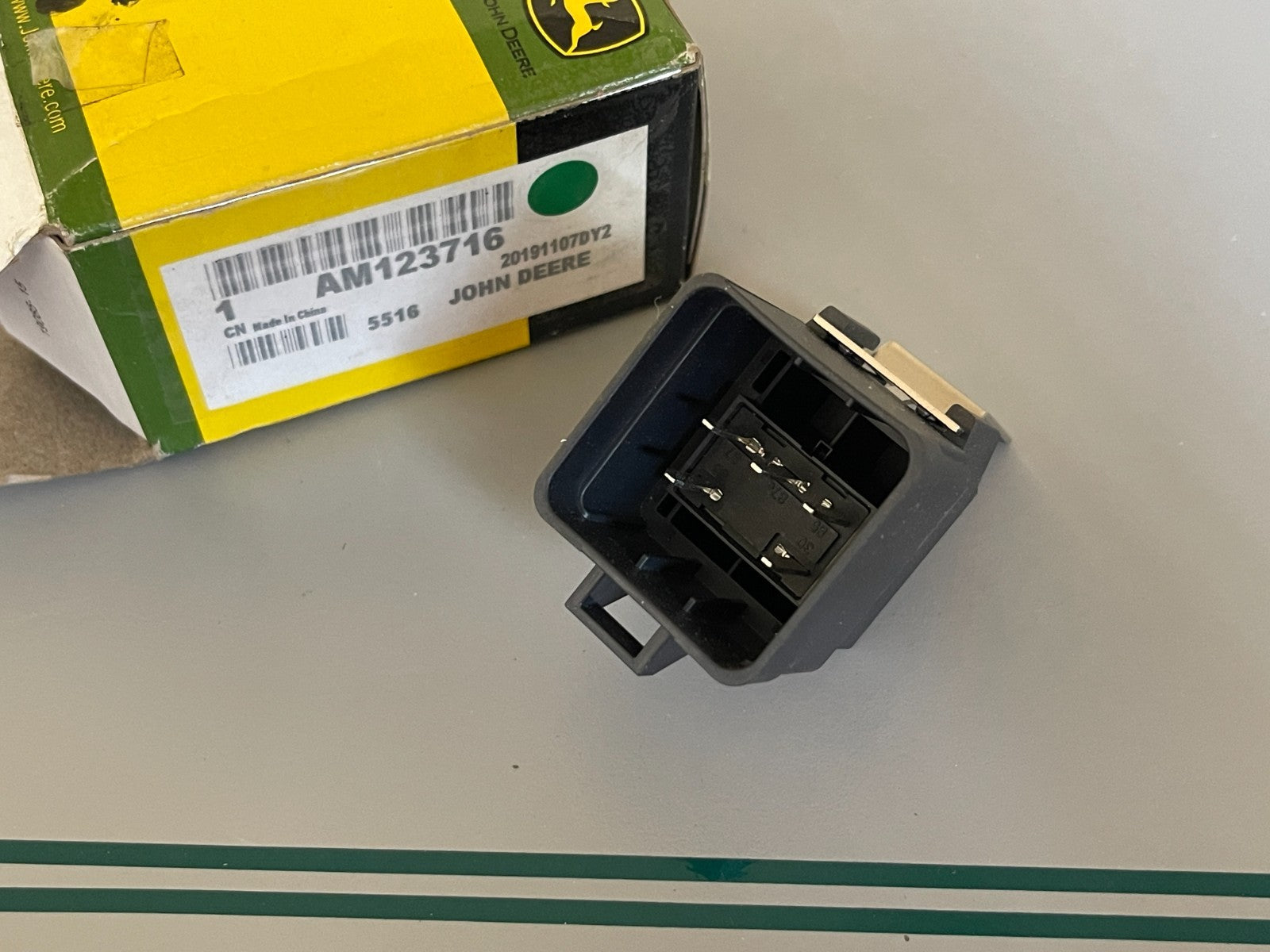

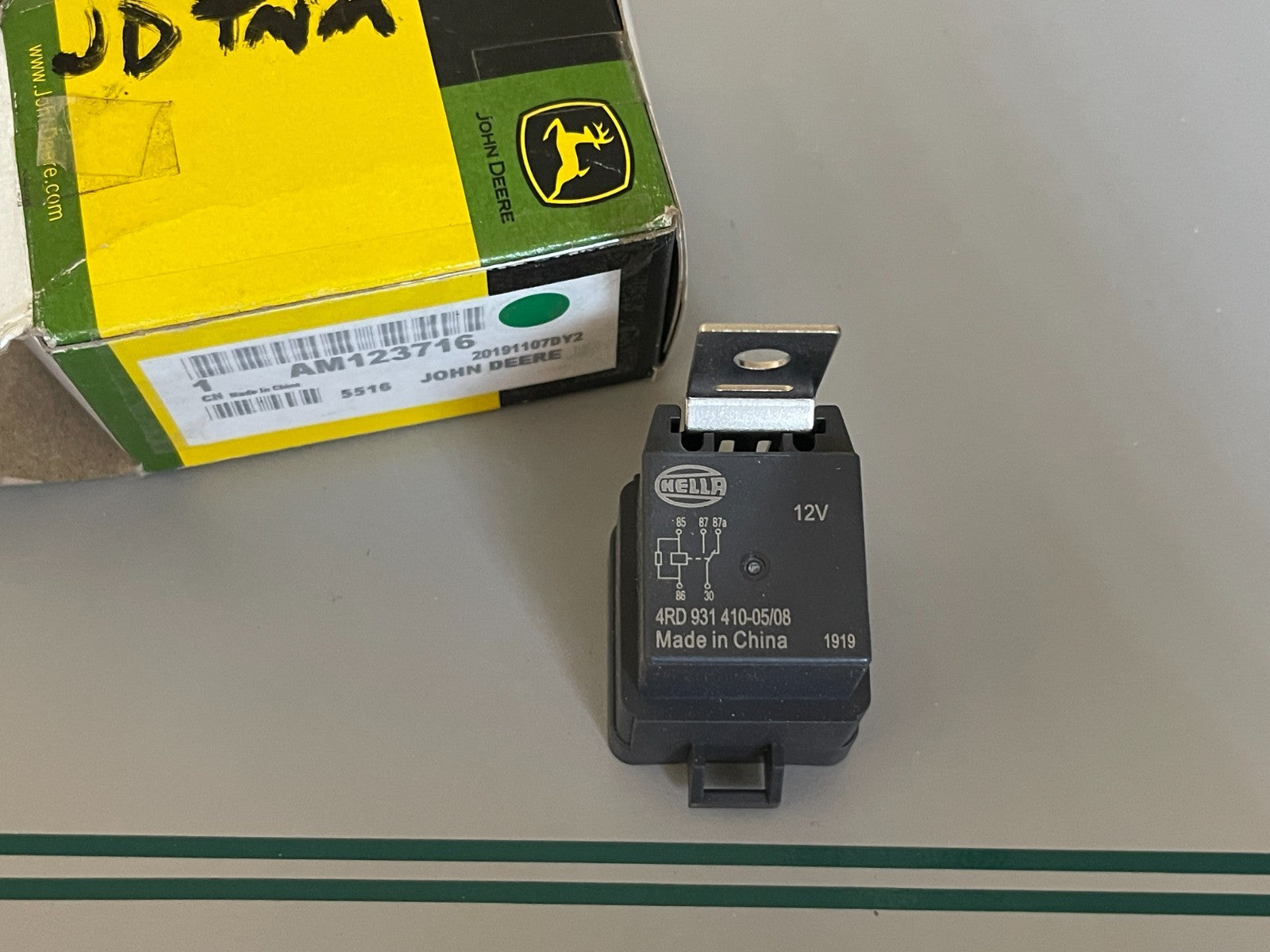

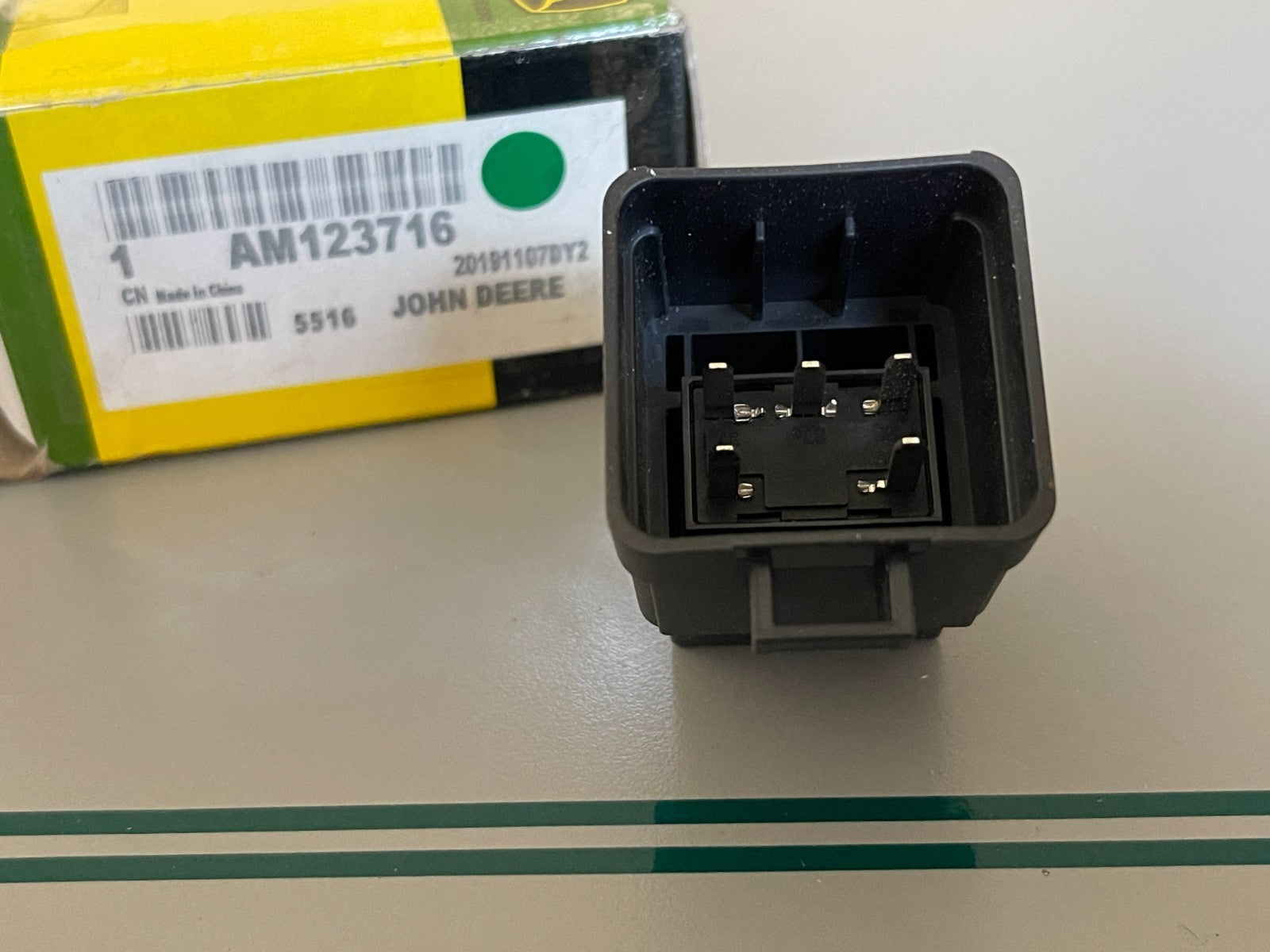

John Deere OEM Electrical Relay — Part Number AM123716
Brand: John Deere | Condition: New Old Stock (NOS)
You are purchasing a genuine John Deere OEM Electrical Relay, part number AM123716. This is an authentic factory original part — never installed, never used.
Condition Details:

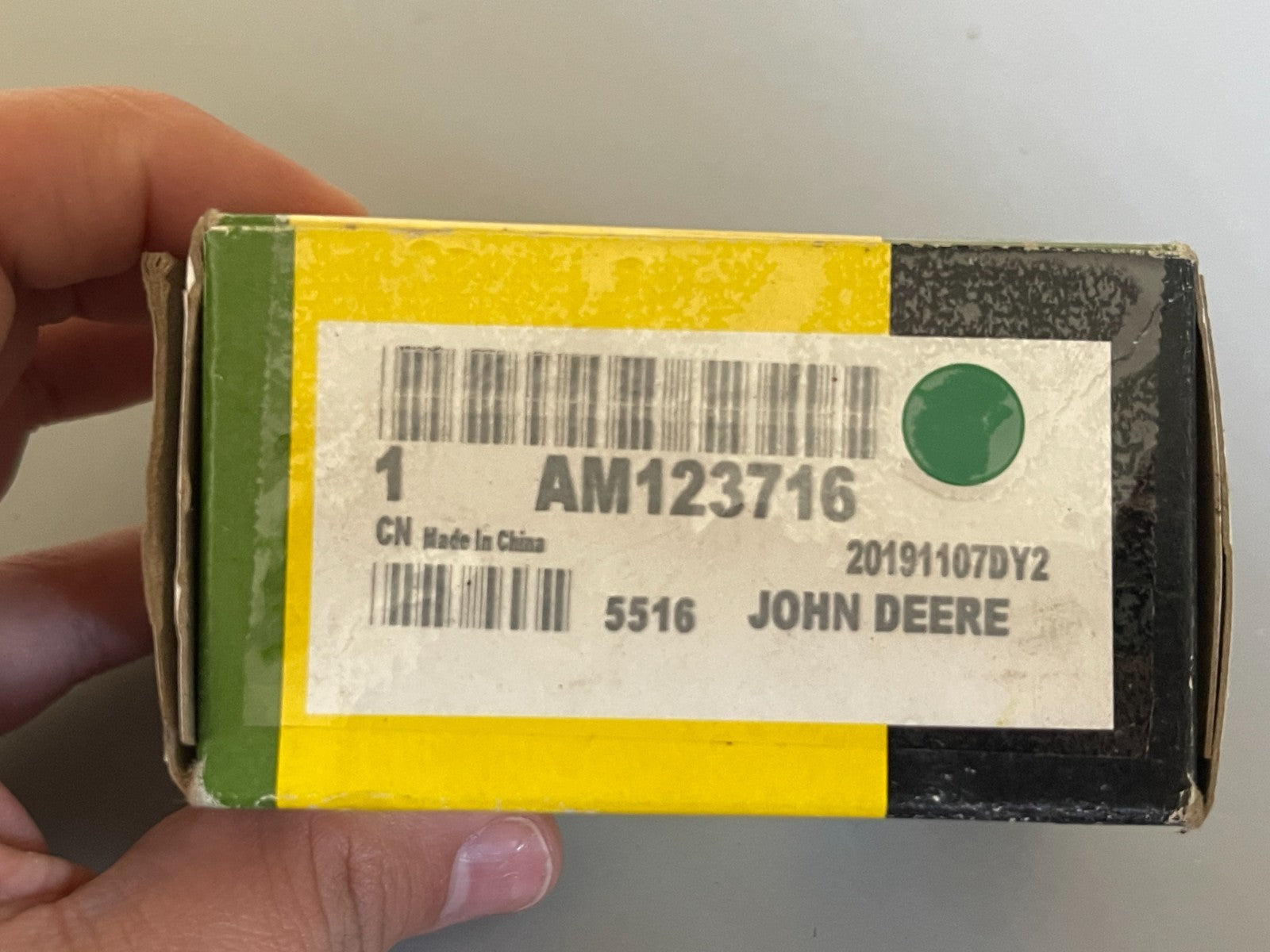

This is a New Old Stock (NOS) part. The relay itself is in new, uninstalled condition. As is common with NOS inventory, the original packaging may show signs of age, including shelf wear, dust, or minor cosmetic blemishes on the bag or box. The part is new and fully functional.
Part Specifications:
- Type: Sealed Electrical Relay
- Operating Voltage: 12V
- Current Rating: 30A
- Weight: 0.14 lb
Part Number / Supersede Information:
- Primary OEM Part Number: AM123716
- Supersedes / Replaces: TCA16113, TCA15415, KV18670, 57M8945

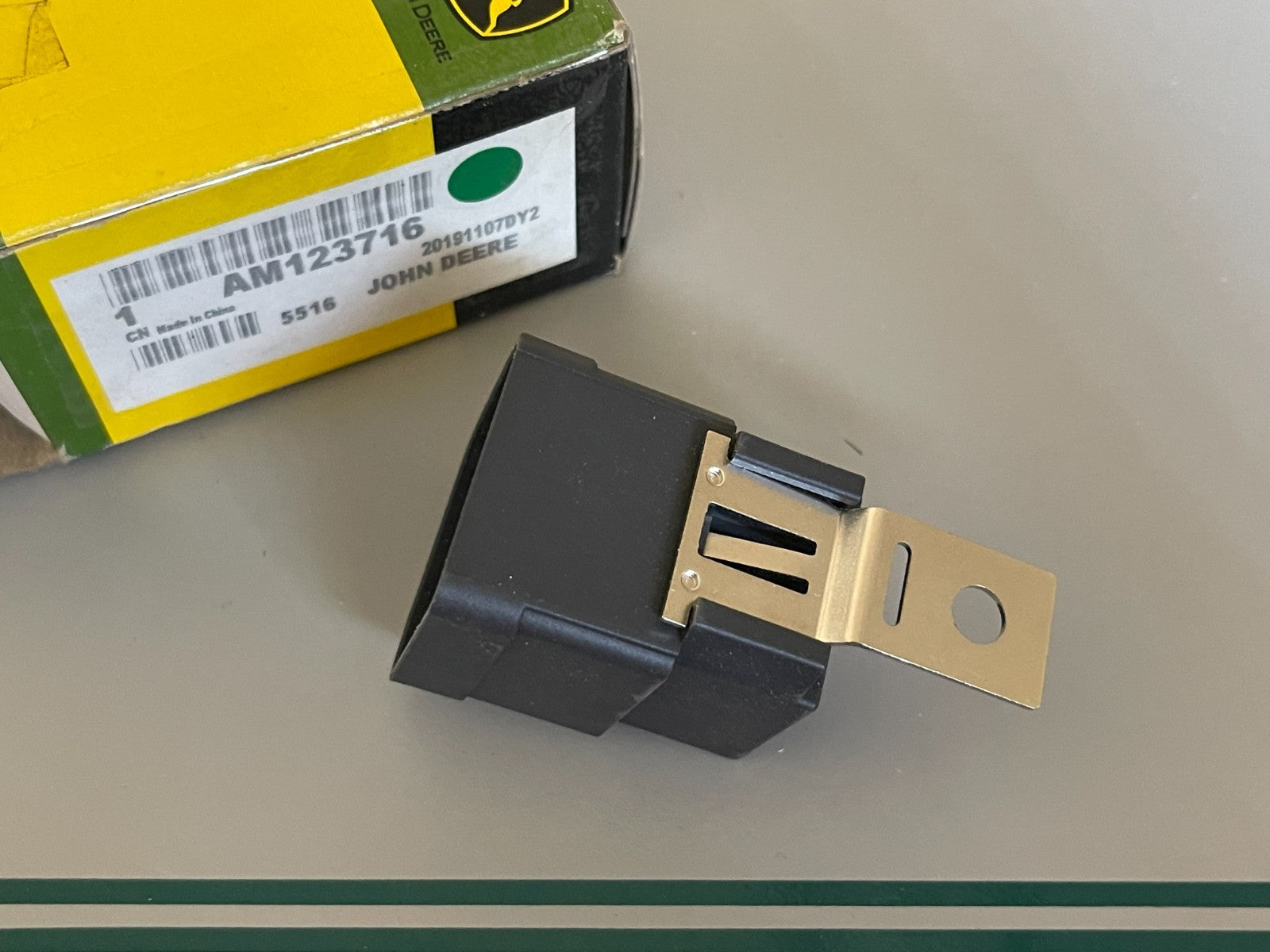

- Also used as an Ariens replacement relay (AM123716 with bracket)
Compatible Equipment (Partial List):
- Front Mowers: 1420, 1435, 1445, 1545, 1565, 1580, 1585, 1504, 1505, 1512, 1515, 1550, 1570, 1575, 1600
- Greens & Turf Mowers: 2500, 2500A, 2500B, 2500E, 2653A, 2653B, 7200, 7400, 7500, 7500A, 7700, 8000, 8400, 8500, 8700, 8800
- Quik-Trak Stand-Ons: 647, 647A, 657, 657A, 667, 667A
- ZTrak Zero-Turn Mowers: 717, 717A, 717E, 727, 727A, 737, 757, 777, 797, 997, F620, F680, F687, F735, Z520A, Z810A, Z820A, Z830A, Z840A, Z850A, Z860A, Z910A, Z920A, Z920M, Z925A, Z925M, Z930A, Z930M, Z945M, Z950A, Z950M, Z955M, Z960A, Z960M, Z970A, Z997R
- X Series Garden Tractors (Serial No. 040,000 and above): X465, X475, X485, X495, X575, X585, X595, X720, X724, X728, X729, X740, X744, X748, X749, X750
- Compact Utility Tractors: 2305, 3033R, 3038R, 3039R, 3045R, 3046R, 3120, 3320, 3520, 2032R, 2036R, 2038R, 3025E, 3032E
- Gator Utility Vehicles: 2020 & 2030 ProGator, 4X2 & 4X4 HPX, 6X4, XUV620i, XUV625i, XUV825i, XUV835R, XUV855D, XUV865R
- Agricultural Tractors: 5083EN, 5093EN, 5101EN, 5325N, 5425N, 5525N, 7630, 7730, 7830, 7930
- Also fits: Great Dane Chariot LX, Super Surfer 48, and Estate Series mowers
Why Choose OEM Parts? OEM parts are engineered and manufactured to exact factory tolerances, ensuring a precise fit, reliable performance, and long service life. Unlike aftermarket alternatives, OEM parts are designed specifically for your equipment — no modifications, no guesswork.
Returns: We proudly offer hassle-free returns. If you are not completely satisfied with your purchase for any reason, simply open a return request through eBay within 30 days of purchase and we will take care of you promptly.
Thank you for choosing QBS Parts INC! We truly appreciate your business. If you have any issues whatsoever with your order, please give us the opportunity to resolve it before leaving feedback — we are committed to making every transaction a great experience.
Please verify fitment using your equipment's model and serial number before purchasing. Feel free to message us with any questions — we're here to help!
