FAG 22215ES.C3 Spherical Roller Bearing 75x130x31mm Self-Aligning Double Row NOS

DESCRIPTION:

FAG 22215ES.C3 — Double Row Spherical Roller Bearing

Brand: FAG (Genuine) Part Number: 22215ES.C3 (legacy designation; modern equivalent: 22215-E1-C3) Condition: NOS — New Old Stock, factory-new and unused

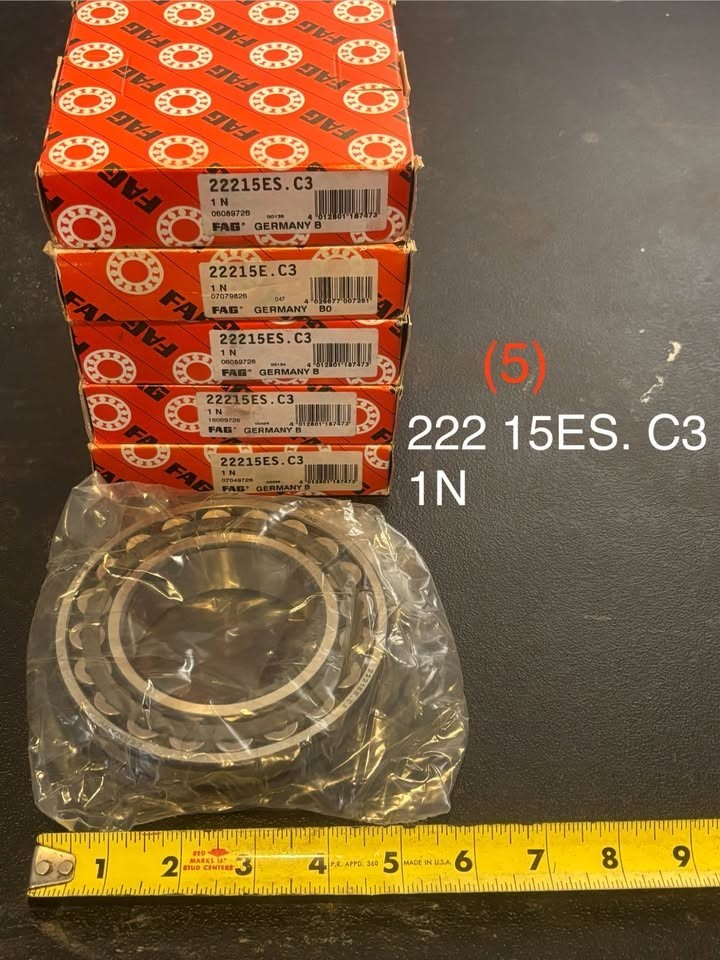

IMPORTANT: This listing is for ONE (1) bearing. The photo may show multiple bearings for reference, but only one bearing will be shipped per purchase. Order the quantity you need.

WHAT IT IS

The FAG 22215ES.C3 is a double-row spherical roller bearing — one of the most versatile heavy-duty bearings in industrial use. The bearing features two rows of symmetrical barrel rollers running in a concave spherical raceway in the outer ring, which makes the bearing self-aligning: it automatically compensates for shaft misalignment, deflection, and assembly errors up to about 2 degrees. This forgiving design makes spherical roller bearings the standard choice in heavy industrial machinery where perfect alignment is difficult to maintain.

The "E" design uses optimized internal geometry with more rollers and higher load ratings than older standard designs. The "S" suffix indicates a lubrication groove with three lubrication holes in the outer ring for in-place re-greasing. The C3 internal clearance (greater than normal) is ideal for applications with thermal expansion, interference-fit installations, or heavy loads.

SPECIFICATIONS

• Bore (inner diameter): 75 mm
• Outer diameter: 130 mm
• Width: 31 mm
• Bearing type: Double-row spherical roller, self-aligning
• Bore type: Cylindrical (straight bore — mounted directly on shaft)
• Cage: Sheet steel
• Internal clearance: C3 (greater than normal)
• Design: E series (optimized geometry, higher load capacity)
• Lubrication: External grease via three holes in outer ring (S suffix)
• Maximum operating temperature: 200°C
• Self-aligning capability: up to 2°

COMMON APPLICATIONS

This bearing is widely used wherever heavy radial loads, axial loads in both directions, and shaft misalignment must be accommodated: industrial gearboxes and reducers, electric motors and generators, pumps and compressors, fans and blowers, paper and pulp machinery, mining and quarrying equipment, vibrating screens and crushers, conveyor pulleys, marine drive systems, and agricultural machinery. The cylindrical bore version is mounted directly on a shaft with an interference fit (rather than the tapered K version that uses an adapter sleeve).

CROSS-REFERENCES / SUPERSEDES

Modern FAG equivalent: 22215-E1-C3 / 22215-E1-XL-C3 (current X-life production). Cross-references from other manufacturers: SKF 22215 E/C3, SKF 22215 EK/C3 (tapered bore equivalent), NSK 22215EAEC3, Timken 22215EJW33C3, Koyo 22215RHRKC3, NTN 22215EAKD1, Nachi 22215EXW33C3. Note that "K" suffix variants have a tapered bore (1:12) and require an adapter sleeve — they are NOT direct substitutes for this straight-bore version.

CONDITION DETAILS

This is genuine FAG New Old Stock from FAG's original German production. The bearing is factory-new, unused, and in full working condition. The "ES.C3" designation is FAG's legacy nomenclature predating the Schaeffler reorganization (the modern designation is 22215-E1-C3) — same bearing, original packaging. Original packaging may show shelf wear, dust, or minor cosmetic flaws from long-term storage.

RETURNS

30-day return policy. If you're not satisfied for any reason, you may open a return request through eBay within 30 days of purchase.

Please verify this part number, dimensions, and bore type (cylindrical/straight bore — NOT tapered) match your application before purchasing. If you have questions, message us before buying — we're glad to help!
